产品名称：混凝土含气量测试仪
型号：A-AB-1200、A-AV-1300、A-AA-1100
厂家：美国NDT James

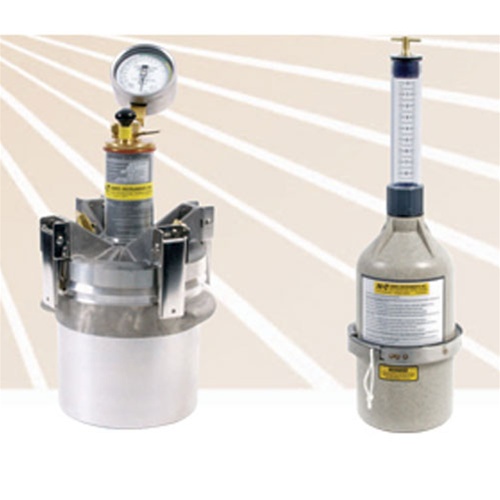

美国NDT James A-AB-1200 A-AV-1300 A-AA-1100 Air
Meters混凝土含气量测试仪（砼含气量测定仪）以最高工业标准生产。这是量度混凝土最精确的仪器。A-AB-1200是重量轻、耐用及容易使用的仪器。
James Air Meter for Fresh Concrete
James offers a complete line of pressure air meters as well
as air entrainment meters for determining the percentage of entrained air in
freshly mixed concrete.
· Roads
· Bridge Decks
· Cold Weather Concrete
· Light weight
· Superior rugged design
· Easy to read gauges insure air entrainment consistency
· Three popular models to choose from
· Conforms to ASTM C-173, C-231
Air content plays an important role in concrete, James offers the user a
full range of air meters such as ASTM "Type A" Pressure Meter, ASTM "Type B"
Pressure Meter and the Volumetric Air Meter.
A-AB-1200 ASTM Type B pressure air meter (most popular
design)
The James Instruments™ ASTM "Type B" Pressure Air Meter is
manufactured to the highest standards in the industry. It is the most precise
air measuring device available for concrete. Utilizing a heat treated aluminum
body and cast in handles on the base the A-AB-1200 is a light weight,
durable, and easy to use piece of equipment.
The James Instruments™ ASTM "Type B" Pressure Air Meter features a
large number of mechanical improvements over previous designs. The unit uses the
latest technology available in clamping systems. It uses large stainless steel
clamp levers, each with a holding capacity of 2500 lbs. These clamps provide the
user with dependable operation every time. It also features innovative sealing
technology for accurate readings and long life. Ruggedness has also been
improved by using full welds on critically hardened seams rather than spot
welds. The A-AB-1200 also comes with a durable, advanced, high volume
pump as well as a large easy to read gauge, and bourdon tube. These features
makes the James Instruments™ ASTM "Type B" Pressure Air Meter the most
durable, accurate, rapid and easy to use meter on the market. The pressure gauge
is color coded for entrained and entrapped air. The system meets ASTM C- 231
& AASHTO T152 standards.
The A-AB-1200 James Instruments™ ASTM "Type B" Pressure Meter comes
with Air Meter, carry case, calibration vessel, inside calibration vessel,
outside calibration vessel tube, 3 oz syringe, Strike off bar, 24" tamping rod
and 16 oz rubber mallet.
A-AV-1300 James Instruments™ ASTM Volumetric Air
Meter
Easily measures entrained air in any type of concrete. It has a state of
the art design where there are no threads to strip, an easy to use expansion
plug top and an all stainless steel V clamp that securely holds the top and
bottom together. The unit also has a leak proof 'O' ring design, as well as
improved clamp system so that it can easily and smoothly roll on the clamp.
This light weight unit weighs 1/3 of its brass counterpart and about 1/2
the weight of an aluminum unit. Easy to clean, the unit is made of reinforced
fiberglass and PVC. The system conforms to ASTM C-173.
The A-AV-1300 James Instruments™ ASTM Volumetric Air Meter comes
with Meter, Funnel, Syringe, Tamper, Calibrated Cup, Mallet, Strike off Bar and
Plastic Carry Case.
A-AA-1100 ASTM “Type A" Pressure Air Meter Model
The James Instruments™ ASTM "Type A" Air Meter is used to determine
the amount of entrained air in freshly mixed concrete.
The A-AA-1100 "Type A" Pressure Air Meter needs little or no
maintenance and is the meter of choice in certain regions. The measurements are
displayed on the graduated cylinder attached to the meter after the sample base
has been pressurized.
This light weight aluminum design conforms to ASTM C- 231 and the complete
systems comes with Meter, Calibration Vessel, Rod, Scoop, Strike off Bar,
Mallet, Instructions and Steel Carry case.
A-AB-1200 Meter
· Net Wt. 21.5 Lbs. (9.7 kg)
· Height 22 in. (56 cm)
· Diameter 9 in. (23 cm)
A-AV-1300 Meter
· Net Wt. 5.5 Lbs. (2.5 kg)
· Height 24.25 in. (61.5 cm)
· Middle Dia. 7.25 in. (18.4 cm)
· Volume 134 cu.in. (2200 ml)
· Sight Tube 0-6%
A-AA-1100 Meter
· Net Wt. 30 Lbs. (13.6 kg)
· Height 24.3 in. (61.7 cm)
· Diameter 12 in. (30.5 cm)
