美国NDT JAMES R-C-400/450/475/410 Rebarscope钢筋扫描仪

美国NDT JAMES R-C-475 Rebarscope钢筋扫描仪,精确地定位钢筋、测定保护层厚度、估测混凝土中钢筋(或其它金属物体)直径。

美国NDT JAMES R-C-400/450/475/410  Rebarscope钢筋扫描仪

产品名称:钢筋扫描仪
型号:R-C-400、R-C-450、R-C-475、R-C-410、RC-3000 R-MK III

美国NDT JAMES R-C-400/450/475/410 Rebarscope钢筋扫描仪产品简介:
The digital version of a classic rebar locator, rebar finder
Applications
  • Structural Engineers
  • Rebar Mapping
  • Rebar Network Analysis
  • Utility Mapping
Features & Benefits
  • Eddy current sensor design for greater accuracy with built in temperature compensation, no need to zero the sensor.
  • Single sensor for all depth ranges.
  • Seperate sensor and main instrumentation unit to scan difficult to access area's.
  • Locates rebar, post tension cable, conduit,and copper pipe.
  • Rugged and splash resistant case. Daylight visible display.
  • Optional Scan Cart™ logs distance data as well as location of rebar.
  • Locates up to 8" (200 mm) deep. Determines bar size up to 4.5" (115 mm) deep.
  • Conforms to ACI 318, BS 1881 Part 204, DIN 1045, CP 110, EC 2, SIA< 162, DGZfP B2.
Specifications
Main Unit
Weight:
5.4lbs 2.5Kg
Size:
10.63" L x 9.68" W x 4.88" H (27cm x 24.5cm x 12.4cm)
LCD Size:
320 x 240 pixels
LCD Dim.:
3.5" L x 4.65" H (8.9cm x 11.8cm)
Recharging Voltage:
18v
Memory Capacity:
80 thousand data points
Battery Life:
4 - 6 hrs continues run time
Probe Dimensions
Weight:
1 lb 0.45Kg
Size:
5" L x 2.4" W x 1.6" H (12.7cm x 6cm x 4.1cm)
Scan Cart Dimensions
Weight:
1 lb 0.45Kg
Size:
8.25" L x 5.6" W x 2.25" H (20.1cm x 14.2cm x 5.7cm)
Maximum Scan Length:
48 ft. 14.6m
  • R-C-400 BASIC UNIT includes the following: Main Unit, Probe, 8ft Cable, Sizing Template, Charger, and Headphones
  • R-C-450 BASIC UNIT WITH SOFTWARE includes the following: Main Unit, Probe, 8ft Cable, Sizing Template, Charger, Headphones, RS-232 Cable, and Basic Software.
  • R-C-475 SCAN CART UPGRADE includes the following: Scan Cart, 2 Extension Rods, 12ft Cable, Scanning Software. Turns your Basic Unit into a complete system (R-C-410).

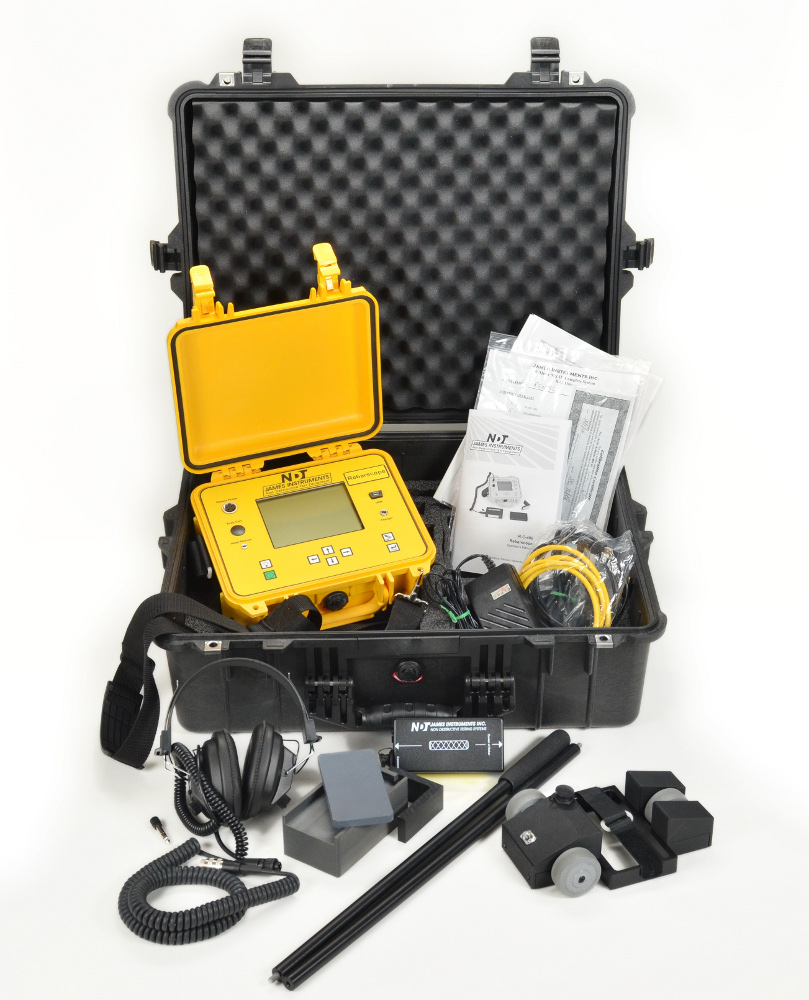

  • R-C-410 COMPLETE SYSTEM includes the following: Main Unit, Probe, 8ft & 12ft Cable, Scan Cart, Headphones, Charger, Complete Software (Basic and Scanning Software), RS-232 Cable, Sizing Template, 2 Extension Rods

以上是美国NDT JAMES R-C-400/450/475/410 Rebarscope钢筋扫描仪
